As a professional ESS solution provider, Hypers Innovation Limited has been enormously engaged in the ESS field for many years and owns a complete portfolio of battery module, PACK, to RACK and container system. Our ESS battery products have been successfully applied to many projects from domestic and overseas ESS leading enterprises, realizing the full application scenario coverage of power-side, grid-side and user-side.
With large-scale production capacity, Hypers Innovation Limited can provide more efficient ESS solutions for customers and the market continuously and helping the large-scale industrialization and high-quality development of energy storage industry.

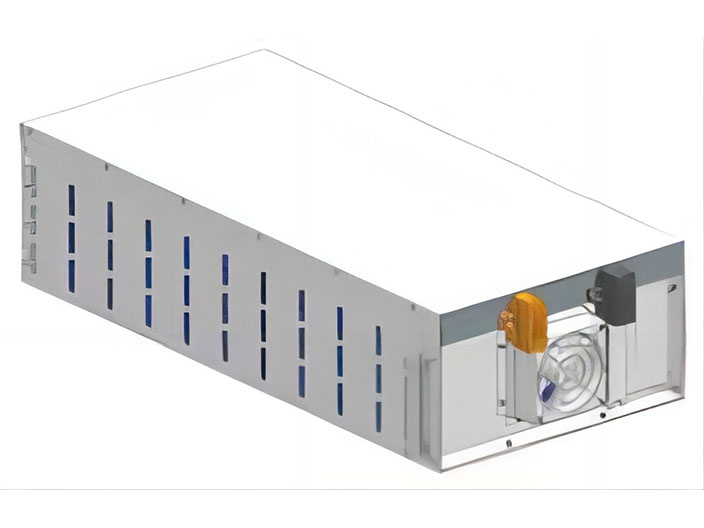

| Model | TW-AP-1P20S-280 |
| C-rate | ≤1C |
| Cell type | LFP |
| Configuration | 1P20S |
| Nominal capacity | 17.9 kWh |
| Nominal power | ≤17.9 kWh |
| Nominal voltage | 64.0 Vdc |
| Operating voltage range | 50.0~73.0 Vdc |
| Dimensions(W*H*D) | 470*250*915 mm |
| Weight | ≈130 kg |

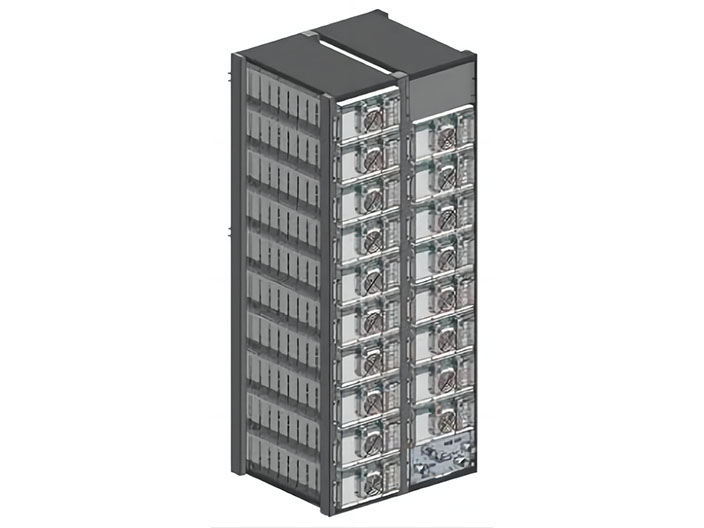

| Model | TW-AR-1P350S-280 |
| C-rate | ≤1C |
| Cell type | LFP |
| Configuration | 1P350S(18 PACKs in 2 columns 10 layers) |
| Nominal capacity | 313.6 kWh |
| Nominal power | ≤313.6 kWh |
| Nominal voltage | 1120.0 Vdc |
| Operating voltage range | 980.0~1260.0 Vdc |
| Dimensions(W*H*D) | 1000*2400*920 mm |
| Weight | ≈2500 kg |

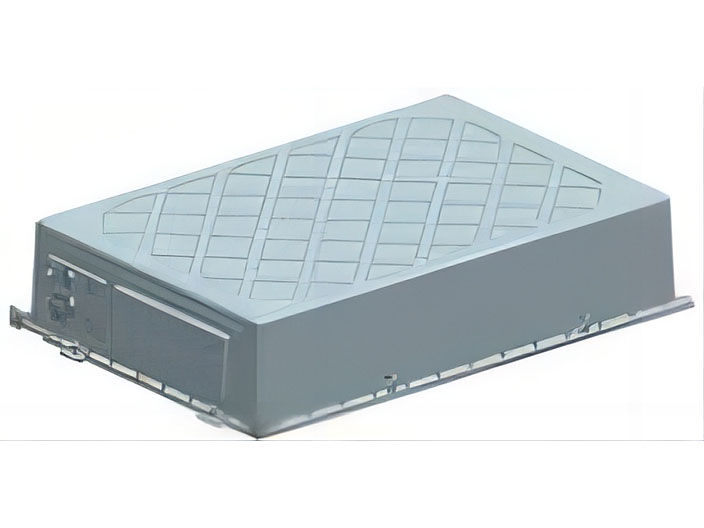

| Model | TW-LP-1P52S-305 | TW-LP-1P52S-280 |
| C-rate | ≤1C | ≤1C |
| Cell type | LFP | LFP |
| Configuration | 1P52S | 1P52S |
| Nominal capacity | 50.7 kWh | 46.5 kWh |
| Nominal power | ≤50.7 kWh | ≤46.5 kWh |
| Nominal voltage | 166.4 Vdc | 166.4 Vdc |
| Operating voltage range | 130~189.8 Vdc | 130~189.8 Vdc |
| Dimensions(W*H*D) | 808*1160*240 mm | 808*1160*240 mm |
| Weight | ≈350 kg | ≈330 kg |

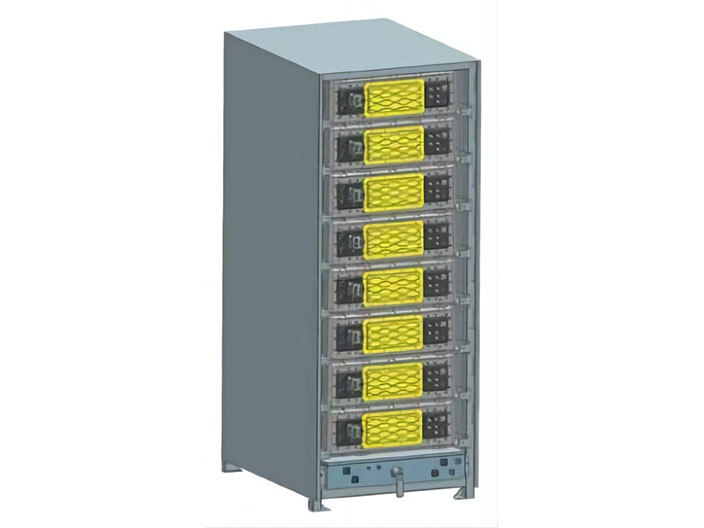

| Model | TW-LR-1P416S-280 |
| C-rate | ≤1C |
| Cell type | LFP |
| Configuration | 1P416S(8 PACKs in 1 column 9 layers) |
| Nominal capacity | 372.7 kWh |
| Nominal power | ≤372.7 kWh |
| Nominal voltage | 1331.2 Vdc |
| Operating voltage range | 1123.2~1497.6 Vdc |
| Dimensions(W*H*D) | 930*2300*1170 mm |
| Weight | ≈3300 kg |
We will provide customers with humanized pre-sale private humanized pre-sale private design, full tracking service during the sales process, and after-sales private customer service, to provide customers with a full range of personalized and professional after-sales service. To provide customers with provide customers with worry-free use.
Hypers in the provision of quality products at the same time, but also committed to improve the service support system construction, so that it becomes a bridge connecting users and Hypers, to provide users with quality technical services.
Service idea
Free 24/7 Support
Real-time tracking
Timely response
Active return visit
Tell Us What You Need, Our Engineers Will Contact You Within 12 Hours And Provide You With Free Technical Solution.
