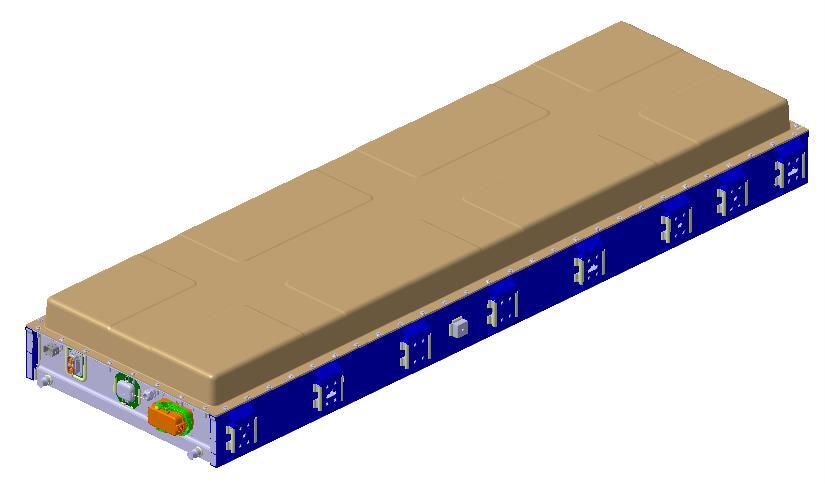

Battery Products for Light Truck

Product advantage

Battery system with single pack helps vehicle upgrade and enhance the comprehensive competitiveness.

Weight loss: Previous double brackets on both sides are changed to bottom hanging for battery pack. Weight ratio of brackets is reduced.

Cost reduction: Reduce the number of wiring harnesses, connectors and brackets between battery packs. Cancel junction box and control box.

Good assemblability: The upper part of the battery pack can be hidden in the chassis girder to improve the clearance from the ground.

High safety and reliability: High-safety LFP system, high-strength pack integration design, meeting the safety requirements of GB38031.

Strong anti-attenuation ability: Ultra-high cycle life LFP system and industry-leading reliability control, meeting the 8-year warranty (subject to the final mass production).

High energy density: ＞150Wh/kg energy density on pack level helps to reduce whole vehicle weight.

Diversified energy selection: High, medium and low energy configuration, high and low voltage choose, meeting the market demand of different vehicle types as well as mileage.

Interface standardization: Pack installation interface, electrical interface and thermal management interface are unified and highly standardized.

Strong temperature adaptability: Equipped with electric heating system and selective water cooling to adapt to the ambient temperature with range of -30~40 ℃ .

Strong mechanical protection: IP68 protection, meeting various harsh environmental driving conditions

Product Basic Parameters

Product type	High energy	High energy	High energy	High energy
Energy	100.46kWh	77.28kWh	100.96kWh	86.55kWh
Voltage	502.32V	386.40V	376.74V	540.96V
Capacity	200Ah	200Ah	268Ah	160Ah
Pack dimension	2300760250mm	1894760250mm	2300760250mm	2300760239mm
Pack name	L200Q01	L200R01	L268Q01	L160Q01
Configuration	1P156S	1P120S	1P117S	1P168S
Energy density	>155Wh/kg	>150Wh/kg	>155Wh/kg	>150Wh/kg
Thermalmanagement	Heating film/Water or natural cooling	Heating film/Water or natural cooling	Heating film/Water or natural cooling	Heating film/Water or natural cooling
IP level	IP68	IP68	IP68	IP68

Our Service

We will provide customers with humanized pre-sale private humanized pre-sale private design, full tracking service during the sales process, and after-sales private customer service, to provide customers with a full range of personalized and professional after-sales service. To provide customers with provide customers with worry-free use.

Hypers in the provision of quality products at the same time, but also committed to improve the service support system construction, so that it becomes a bridge connecting users and Hypers, to provide users with quality technical services.



Service idea

enthusiasm, initiative, professionalism, high efficiency.


Free 24/7 Support

Our dedicated support team will answer all your questions within 24 hours.


Real-time tracking

all product installation, commissioning, service automatically archived, to facilitate real-time tracking, active service.


Timely response

provide service hotline and technical support phone, timely response to the user's service requirements.


Active return visit

service quality control requirements to do 100% of the return visit, to ensure that the user's equipment can operate normally.
