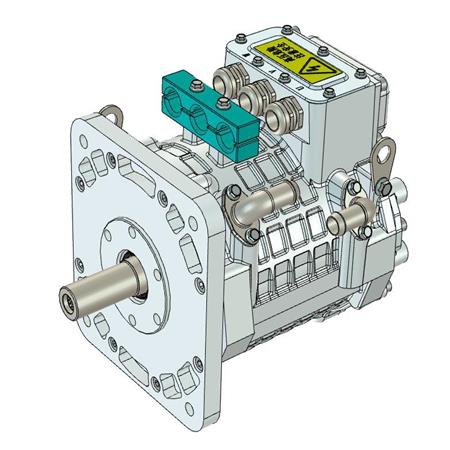

Water-cooled series -SDM02
Water-cooled series -SDM03
| Number | Product model | Power/750rpm | Power/1000rpm | Power/1500rpm | Installation method | Recommended |
| Voltage platform | ||||||
| 1 | SDM0201 | Recommendedspeed3500-5500rpm | Recommended | B5 | 360VDC | |
| power22-40KW | ||||||
| 2 | SDM0301 | 11.8KW | 15.7KW | 23.7KW | Horizontal type/ | 360VDC |
| Vertical | ||||||
| 3 | SDM0401 | 12.5kW | 16.8kW | 25kW | Horizontal type | 360VDC |
| 4 | SDM0402 | 15kW | 20kW | 30kW | Horizontal type | 360VDC |
| 5 | SDM0501 | 27.5kW | 36.6kW | 55kW | B3 | 540VDC |
| 6 | SDM0601 | 22.5kW | 30kW | 45kW | Horizontal type | 540VDC |
| 7 | SDM0602 | 31.3kW | 41.7kW | 62.5kW | Horizontal type | 540VDC |
| 8 | SDM0603 | 41kW | 55kW | 82kW | Horizontal type | 540VDC |
| 9 | SDM0801 | 45kW | 60kW | 90kW | B3 | 540VDC |
| 10 | SDM0802 | 62kW | 83kW | 124kW | B3 | 540VDC |
| 11 | SDM0901 | 72.3kW | 96.3kW | 144.5kW | B3 | 540VDC |
| 12 | SDM0902 | 102kW | 136kW | 204kW | B3 | 540VDC |
| 13 | SDM0903 | 149kW | 198kW | 298kW | B3 | 540VDC |
| 14 | SDM0904 | 170kW | 227kW | 340kW | B3 | 540VDC |

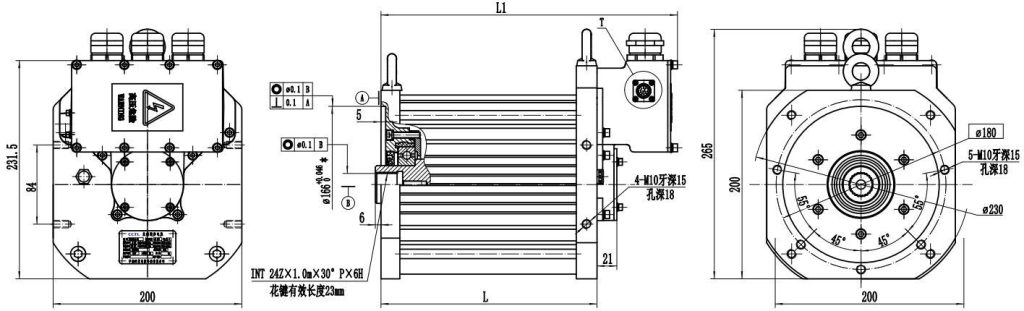

Air-cooled motor-SDM12
| Number | Product model | Power/750rpm | Power/1000rpm | Power/1500rpm | Installation method | Recommended |
| Voltage platform | ||||||
| 1 | SDM1201 | 1kW | 1.36kW | 2kW | Horizontal type/ | 72VDC |
| Vertical | ||||||
| 2 | SDM1202 | 2.5kW | 3.3kW | 5kW | Horizontal type/ | 72VDC |
| Vertical | ||||||
| 3 | SDM1301 | 4.7kW | 6.3kW | 9.4kW | Horizontal type | 153.6VDC |
| 4 | SDM1302 | 7.85kW | 10.5kW | 15.7kW | Horizontal type | 153.6VDC |
| 5 | SDM1401 | 3.3kW | 4.4kW | 6.6kW | Horizontal type/ | 153.6VDC |
| Vertical | ||||||
| 6 | SDM1402 | 4.2kW | 5.6kW | 8.4kW | Horizontal type/ | 153.6VDC |
| Vertical | ||||||
| 7 | SDM1501 | 11.2kW | 22.5 | 11.2kW | Horizontal type | 540VDC |
| 8 | SDM1502 | 18.5kW | 24.6kW | 37kW | Horizontal type | 540VDC |
| 9 | SDM1801 | 31.4kW | 42kW | 63kW | Horizontal type | 540VDC |
| 10 | SDM1802 | 51.8kW | 69kW | 104kW | Horizontal type | 540VDC |
| 11 | SDM1901 | 66kW | 88kW | 132kW | Horizontal type | 540VDC |
| 12 | SDM1902 | 97kW | 130kW | 195kW | Horizontal type | 540VDC |
| 13 | SDM2001 | 142kW | 189kW | 283kW | Horizontal type | 540VDC |
The supporting frequency converter products will be configured by our company for you after the propulsion motor scheme exchange.

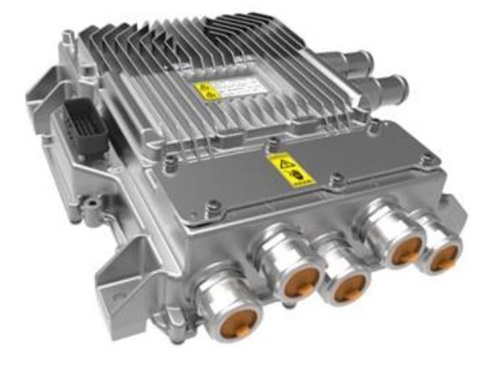

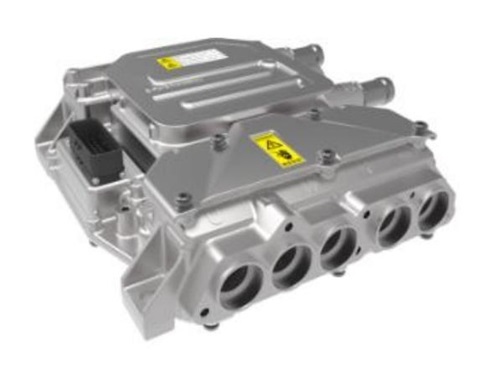

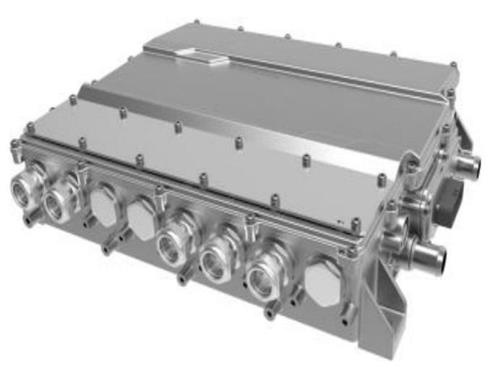

SDV05
SDV03
SDV04
We will provide customers with humanized pre-sale private humanized pre-sale private design, full tracking service during the sales process, and after-sales private customer service, to provide customers with a full range of personalized and professional after-sales service. To provide customers with provide customers with worry-free use.
