SV-355-51-NCM

  • High energy density, high safety, excellent thermal management performance and other advantages.
  • The shell of the module is formed by extrusion of aluminum profile, which reduces the welding process of the conventional VDA355 module.
  • The module design adopts the way of glue filling, which reduces the conventional 355 module block and improves heat dissipation of the module.
Download
Customized

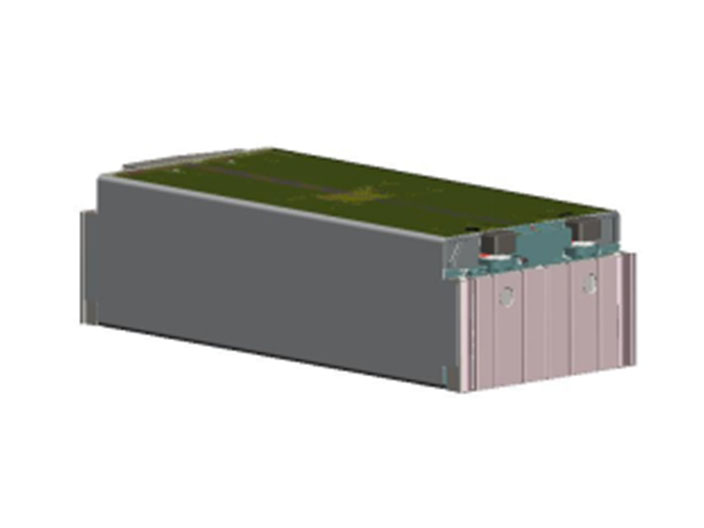

DF-355-53-NCM

  • The Module shell adopts a barrel structure, and the cells are stacked and combined into the shell as a whole;
  • Module low voltage adopts FPC soft row/wiring harness collection, the temperature sensor (2PCS) is placed between the cells (FPC plan) or at the bus bar (wire harness plan), and the soft row is designed with FUSE;
  • The module battery cells are filled with polyurethane foam or the parallel connection uses polyurethane foam and the series connection uses insulation board, depending on customer requirements;
  • The module is filled with glue. The height of the bottom of the module is 2.5mm, and the height of the gap between the two sides and the cells is 12~15mm.
Download
Customized

TW-1P4S-177-NCM

  • TW-1P4S-177-NCM is compact standard cell-stack VDA modules with built-in low leakage & intrinsic safety which target for EV applications.
Download
Customized

TW-1P8S-50-LFP

  • The module is compact cell-stack modules with built-in low leakage & intrinsic safety which target for ESS and Material Handling applications.
Download
Customized

Model Comparison

ModeSV-355-51-NCMDF-355-53-NCMTW-1P4S-177-NCMTW-1P8S-50-LFP
Configuration12S1P/6S2P/4S3P12S1P/6S2P/4S3P/3S4P4S1P8S1P
Module size(355±1)*(151.5±1)*(108±1)mm(355±1)*(151±1)*(108±1)mm355.0*151.5*109.0mm356.0*152.0*108.0mm
Module nominal voltage43.44V/21.72V /14.48V44.4V/22.2V/14.8V/11.1 V14.56V25.6V
Total module energy2215.4 Wh2353.2 Wh2647Wh1280Wh
Operating temperatureCharge：-20℃~55℃Discharge：-30℃~55℃Charge：-20℃~55℃Discharge：-30℃~55℃Charge：-20℃~55℃Discharge：-30℃~55℃Charge：-20℃~55℃Discharge：-30℃~55℃
Storage temperature-40℃~60℃-30℃~55℃-30℃~55℃-30℃~55℃
Pulse Charging power7.7 kW（25℃ , 10s ，50%SOC ，BOL）/ 4.3 kW  (25℃，30s，80%SOC，BOL)
Pulse  discharge power16.8 kW（25℃ , 10s ，50%SOC ，BOL） 7.7 kW  (25℃，30s，20%SOC，BOL)
Mass energy density192213220.5116.3
Maximum continuouscharge current51A/102A/153A53A/106A/159A/212A174 A50 A
Maximum continuousdischarge current153A/306A/459A53A/106/159A/21A261 A50 A
