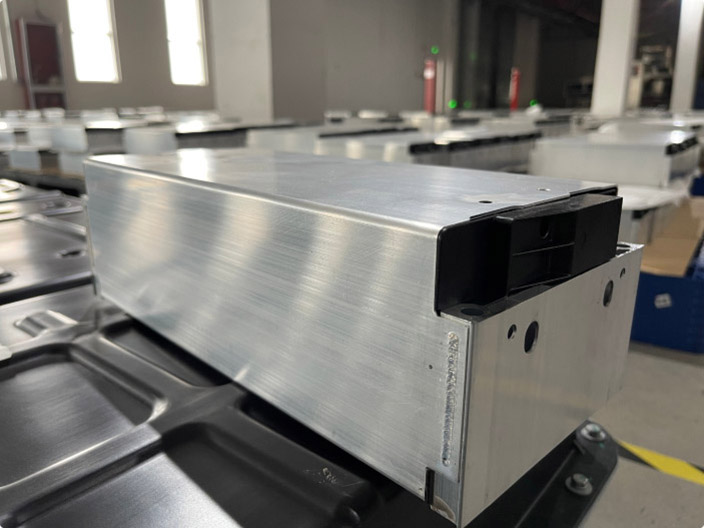

TW-1P 12S -139-NCM

  • TW-1P12S-139-NCM is compact standard cell-stack VDA modules with built-in low leakage & intrinsic safety which target for EV applications.
Download
Customized

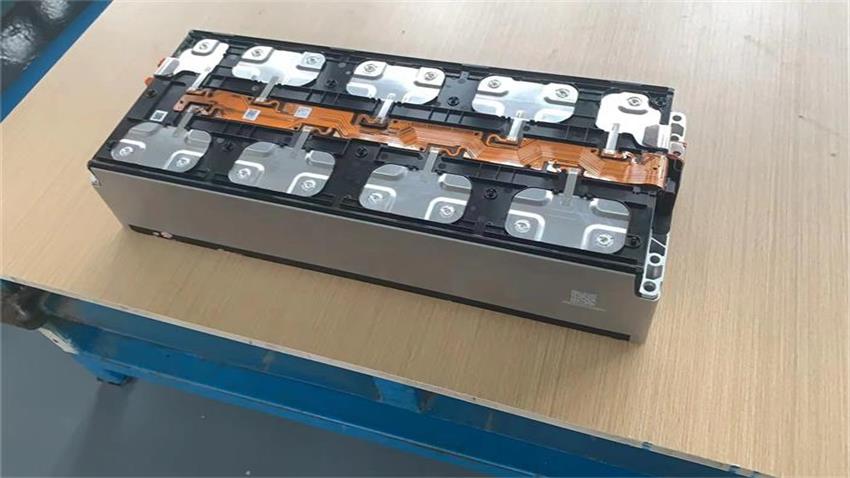

RS-1P8S-246-NCM

  • RS-1P8S-246-NCM is a VDA standard EV module, adopting NCM 246Ah cell, which has the advantages of high energy density, high safety and excellent thermal management performance; Adopting low thermal resistance and high thermal conductivity thermal management design, the module side panel adopts a bottomless plate structure, and heat exchange is carried out through the bottom of the electric core, which can increase the contact area between the electric core and the cooling plate, reduce the thickness of the thermal conductive pad, and improve the cooling capacity of the whole package;
  • The module adopts mechanical, electrical and other safety designs, which can ensure that the structural strength and electrical safety requirements are met.
Download
Customized

Model Comparison

ModeTW-1P 12S -139-NCMRS-1P 8S-246-NCM
Configuration12S1P8S1P
Module size590.0*225.0*109.0mm590*225*117
Nominal voltage44.76V29.36V
Total module energy6221 Wh7222Wh
Operating temperatureCharge：-20℃~55℃Discharge：-30℃~55℃Charge：-20℃~55℃Discharge：-30℃~55℃
Storage temperature-30℃~55℃-40℃~55℃
Mass energy density203.9232.9
Maximum continuouscharge current164A250A
Maximum continuousdischarge current274A290A
